Waterproof IPX7
This Bbtalkin waterproof headset fits all Team Wendy helmets that use the EXFIL quick release adapter kit. You will attach our headset to the EXFIL® Quick Release Adapter (Part No: 80-CAK-MIC). Helmet and adapter sold separately by Team Wendy.
To be used with our BbTALKIN units. You plug the headset’s 3.5mm audio jack directly into your unit for communication.
Boom microphone has replaceable microphone and speaker if corrosion starts to build over time when used in salt water.
SKU: TW01R
Made to be used with the EXFIL® adapater.
- Use fresh water to wash all of the headset.
- Make sure to rinse the microphone and speaker piece.
- DO NOT use high pressure spray.
- It is best to submerge in a bucket of fresh water for a thorough wash.
- Hang to dry in a well ventilated climate controlled (a/c) environment.
- Over time, the male 3.5 jack on the headset may become corroded. (dull in color) Make sure to keep this clean by a cloth or scotch bright. Do not use any cleaning solution. It is best to keep the headset plugged into your unit if possible to help avoid corrosion build up.
If using in salt water, you must fresh water rinse. Failure to do so can cause corrosion and product failure.
Attach the Team Wendy Exfil Adapter to the Bbtalkin headset
On the left side of the Team Wendy helmet, remove the plastic block from the side rail by unscrewing the two allen screws.
Take the rubbing alcohol pad and clean the area where you want to mount the rubber-band mount. You have two options where you can mount your unit:
OPTION 1: Left side of helmet, at least ½ inch above the side-rail, from the bottom of the mount
OPTION 2: Middle of back of helmet.
Using the double sided 3M adhesive, install the plastic mount onto your helmet.
Take your Bbtalkin unit within the waterproof case and place it into the plastic mount. Stretch each rubberband around the waterproof case and secure the band to the bottom of the mount.
Install the Exfil Adapter into the Team Wendy side rail until it clicks.
Plug in the 3.5mm audio cable. Make sure the cable is tight and secure.
If using in salt water, fresh water rinse after each use. Store in climate controlled environment.
x1: Bbtalkin adapter for the Exfil Adapater

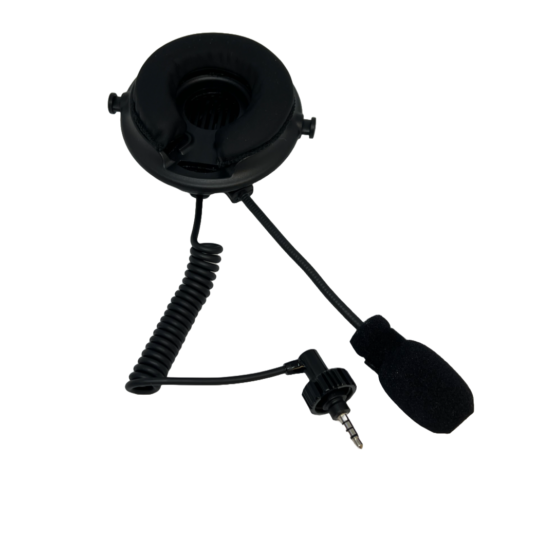

x1: Waterproof boom microphone (Waterproof Boom Microphone with Speaker)
From the date of purchase, the helmet speaker pads and all it’s components are covered for 6 months. Please see our warranty section for complete warranty details.
