This is our new one piece set of our Standard 3.0 unit. You would purchase a single unit if:
- One of your Standard Units become damaged or lost
- Add a fourth person to your current 3-way communication set
** Our Standard Units cannot connect to our Advance Units.
To understand how our new 3.0 units connect for a 2, 3 or 4 way communication, below is a helpful connection chart.
The Standard Units have built in long range Bluetooth for real time communication. You do not need your cell phone or wireless network to connect. Our units connect to one another using their own built in Bluetooth. Our new Standard units allow for real time talk with exceptional voice clarity. The range on these new units is improved from previous model units. Each unit has it’s own volume control and easy mute function.
The Standard Unit can also be used as a general Bluetooth headset being able to pair to your smart phone to take phone calls, listen to music and record live videos
You need to select headsets to plug into your Standard Units. The headsets connect by a male 3.5mm jack and have the microphone and speaker. The headset you choose will be according to where and how you wish to use your units for communication. We offer popular packages online that come complete with headsets used frequently by customers.
Our headsets have an exclusive design which plug into the Standard Unit and screws into it’s casing. This exclusive design keeps the Standard Unit waterproof and protected, and extremely durable.
We offer 100% waterproof, weatherproof or non-waterproof headsets to go with your Standard Units. You can also use any other brand headset as long as it plugs in by a 3.5mm jack. If you use another brand headset, you will need our multi-connector so that the unit stays protected in the waterproof case.
For complete instructions, visit our instructions page.
1-piece set SKU: A01SD
EAN: 4713309040580
SPECIFICATIONS:
Intercall talk time: 14 hr
- If using the Master unit with multiple Standard units, the Master battery life will be less. For example, with a 4-way communication, the Master will have 6-7 hours talk time.
Charge time: 2 hr
Weight: 63g
Range: 1 km (1000 meters for a 2-way)
Waterproof: IPX7 *must be in the waterproof case
When not in use, store in a climate controlled environment.
BATTERY:
LED: The second indicator after power ON
Blue = 100% – 60%
Purple = 60% – 40%
Red = 40% – 0%
Power on Prompt:
“bbtalkin intercom” = 100% – 60%
“battery mid” = 60% – 40%
“battery low” = 40% – 0%
CHARGING:
AC adapter 5V± 5% 500mA
AC adapter less than 5V.
Do not use higher than 5V or this will damage the IC unit and void warranty. Please make sure the device is completely dry before charging.
Charging cable: USB Type C
LED Indicator:
While Charging:
Red = Charging
Blue = Fully Charged
COMPATIBILITY:
3.0 devices do not connect to any prior model BbTALKIN devices.
3.0 will NOT work with BbTALKIN Advance Units.
WARNING:
Do NOT modify or disassemble the device. If your device gets damaged or water inside the case, stop using it immediately. If your device gets wet, stop using and immediately turn off. Let it completely dry in a climate controlled area. Do not try to turn your device back on until completely dry.
If your device takes on water, it is most likely damaged beyond repair. Water damage is not covered under warranty.
- Long range communication up to 1000m (2 way)
- No push to talk. Simultaneous conversation
(hands are always free) - 10h talking time, long battery life
- Easy Mute, one button press
- Superior Voice Clarity
- Volume control with (+) and (-) buttons for volume located at the top of the unit.
- Pair with Smart Phone to take phone calls or listen to music. (Cannot pair to Bluetooth products such as MP3 players, air pods, speakers and watches.)
- Plug directly into a stereo or camera using a 3.5 jack for live recording.
If you wish to communicate with 3 or 4 people, you need a Master Unit. You cannot connect 3 or 4 Standard Units. See our connection chart below:
Advance Units: NO
Our 3.0 Units will NOT connect to Advance Units.
Headsets: YES
Our 3.0 Units are compatible with every BbTALKIN brand headset currently or previously sold.
Other brand headsets: YES
Our 3.0 Units are compatible with any headset that has a 3.5 mm jack. However, any other brand headset will not have our waterproof screw on connection into the waterproof case.
MP3, Smart Watches, Air buds or other Bluetooth Players: NO
Our 3.0 Units will NOT connect to all Bluetooth devices. We can only guarantee they will connect to a cell phone.
VHF Radios: NO
Our 3.0 Units will NOT connect to VHF radios.
2015-March 2018 BLACK Main and Master Unit models: NO
Our 3.0 Units will not pair with any older model BbTALKIN units.
BbSpeaker & BbRadio: NO
Our 3.0 Units will not pair to our BbSpeaker or BbRadio.

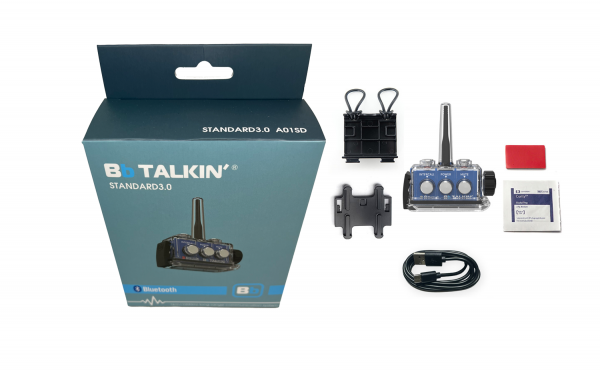

x1: Standard Unit
x1: Waterproof case
x1: Helmet mount
x1: Hat/Goggle mount
x1: 3M adhesive
x1: Charging cable (Type C)
x1: Alcohol prep
One year limited warranty from date of purchase. Please follow our instructions carefully as you are using electronics on the water. It is important to always inspect your equipment after each use to make sure all seals are secure. If you are using during extreme sports and falls are taken with the equipment on, make sure your case did not incur any cracks or breaks. Water damage is not covered under warranty.
