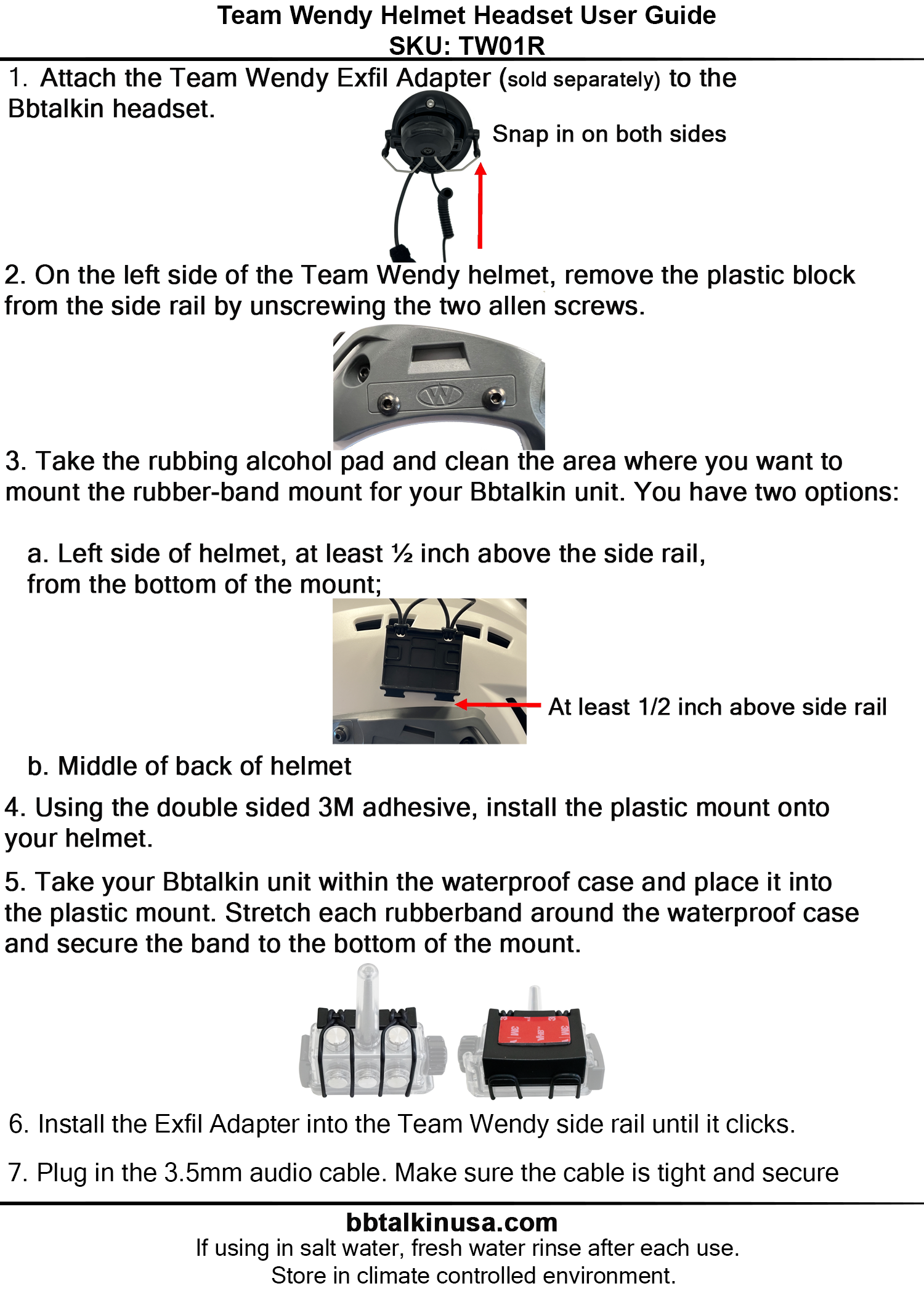

Click here for downloadable version of Instructions
Attach the Team Wendy Exfil Adapter to the Bbtalkin headset
On the left side of the Team Wendy helmet, remove the plastic block from the side rail by unscrewing the two allen screws.
Take the rubbing alcohol pad and clean the area where you want to mount the rubber-band mount. You have two options where you can mount your unit:
OPTION 1: Left side of helmet, at least ½ inch above the side-rail, from the bottom of the mount
OPTION 2: Middle of back of helmet.
Using the double sided 3M adhesive, install the plastic mount onto your helmet.
Take your Bbtalkin unit within the waterproof case and place it into the plastic mount. Stretch each rubberband around the waterproof case and secure the band to the bottom of the mount.
Install the Exfil Adapter into the Team Wendy side rail until it clicks.
Plug in the 3.5mm audio cable. Make sure the cable is tight and secure.
If using in salt water, fresh water rinse after each use. Store in climate controlled environment.
